WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River

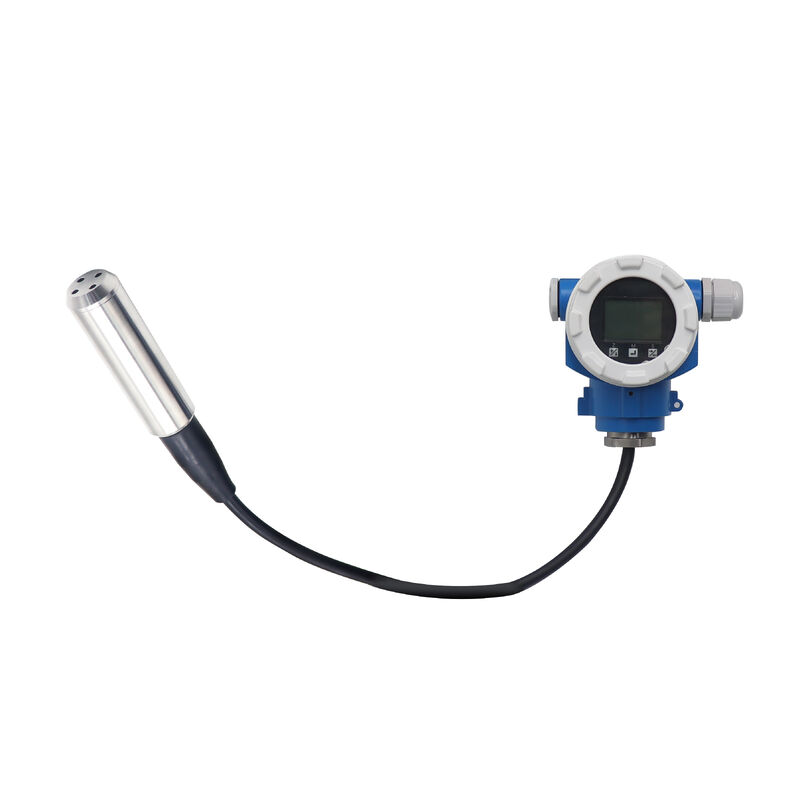

WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River

submersible water level sensor 4-20mA

RS485 liquid level transmitter for tanks

insert-type water level sensor for pools

Miejsce pochodzenia:

Anhui, Chiny

Nazwa handlowa:

WNK

Numer modelu:

WNK8010-TT

Skontaktuj się z nami
Poproś o wycenę
Szczegóły produktu
Gwarancja:
1 rok
Indywidualne wsparcie:
OEM, ODM
Zakres ciśnienia::
0...2~200 metrów
Wyjście:
4-20 mA, 0-5 V, 1-5 V, 0,5-4,5 V, 0-10 V
Dokładność:
0,2% pełnej skali, 0,5% pełnej skali,
Zasilanie:
12 ~ 36 V prądu stałego
Klasa ochrony:
IP68
Aplikacja:
Woda deszczowa, woda pitna, ścieki, ścieki, woda morska
Materiał obudowy:
304SS, 316L
Temperatura pracy::
-40 ~ 85 ℃
Typ:
Miernik
Usługa OEM:
Dostępne OEM, ODM, dostosowywanie
Port:
Szanghaj/Ningbo
Podkreślić:

submersible water level sensor 4-20mA

,

RS485 liquid level transmitter for tanks

,

insert-type water level sensor for pools

Warunki płatności i wysyłki
Minimalne zamówienie
1 szt
Szczegóły pakowania
Każdy zestaw w osobnym kartonie, zabezpieczony pianką. Następnie do kartonu zbiorczego
Czas dostawy
5-8 dni roboczych
Zasady płatności
T/T, Western Union, MoneyGram, Paypal
Możliwość Supply
Czujnik ciśnienia poziomu 2000 sztuk na miesiąc
Opis produktu





WNK 4-20ma Water level sensor for tank level measurement

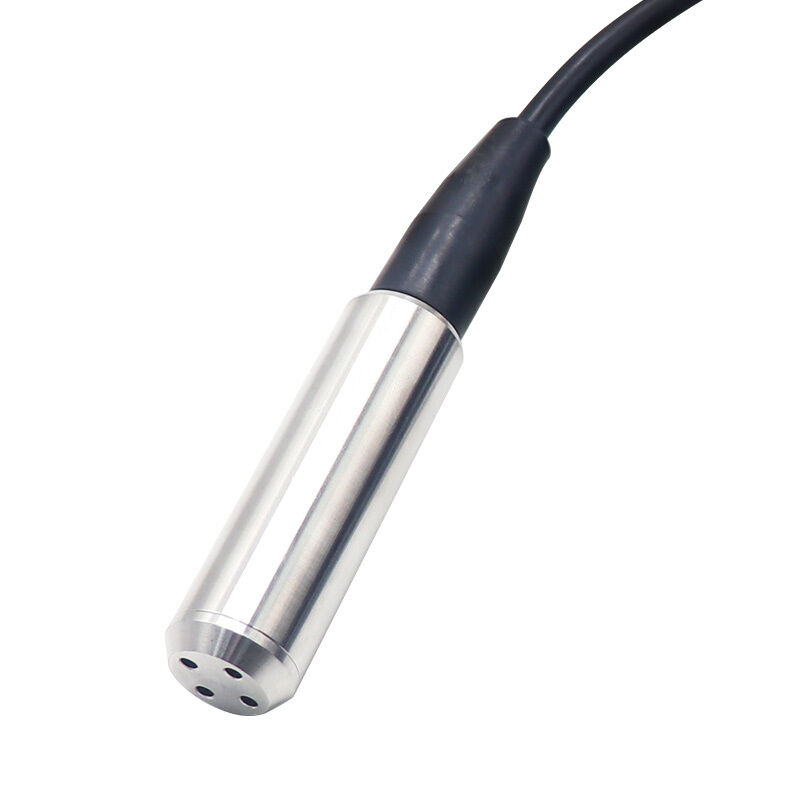

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price



Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.



Dimensions - IP68 Sumbersible Liquid Level Sensor


WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 0
WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 1
WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 2
Product Show
WNK Submersible 4-20mA RS485 Insert-Type Water Level Sensor Liquid Level Transmitter for Water Tank Pool River 3
